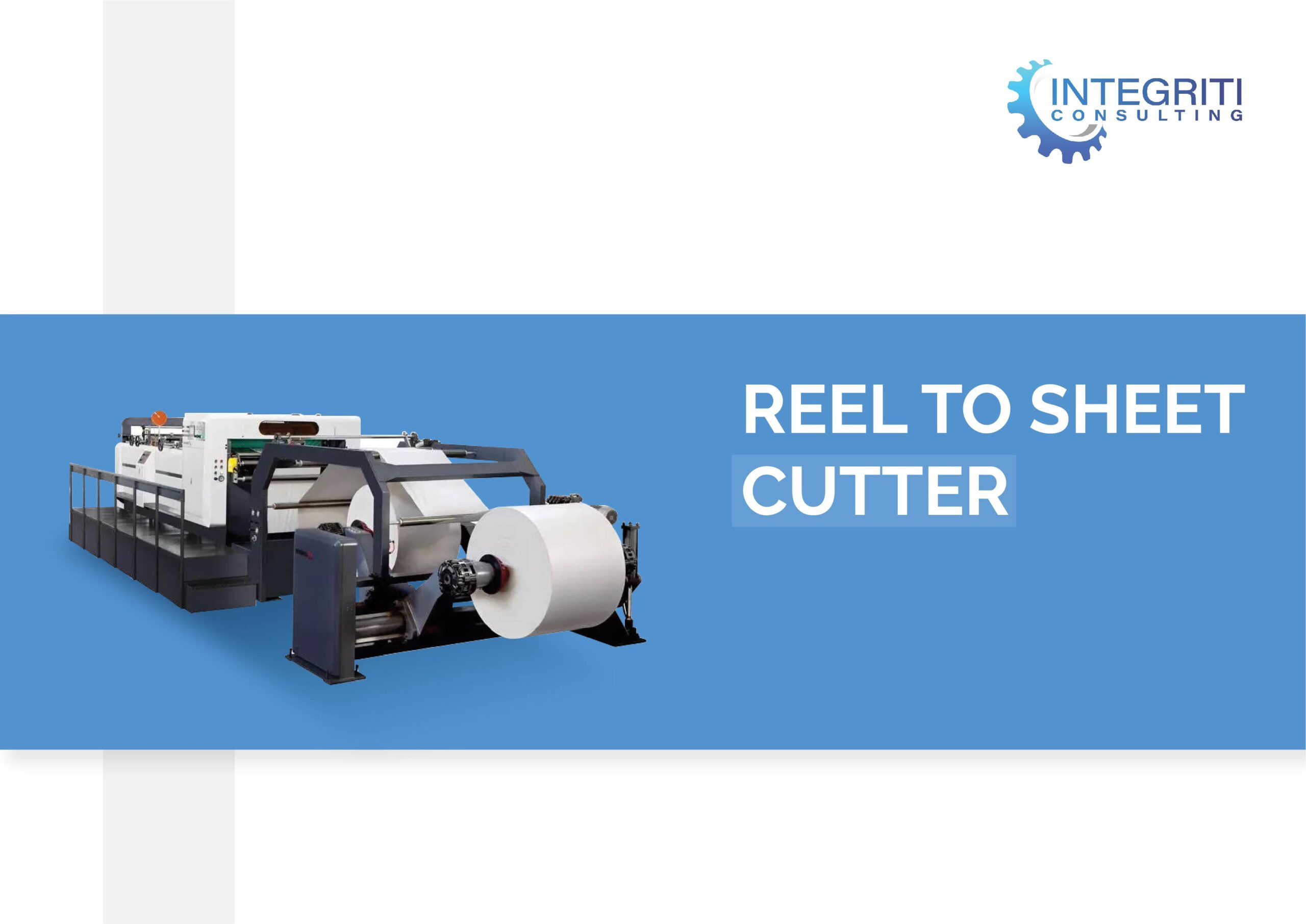

Reel to Sheet Cutter
- Our sheeters can handle cellulose, paper and cardboard, as well as security and specialty papers.
- Designed for paper and cardboard manufacturers, converting plants and paper finishing facilities with medium to high production capacities that require flexibility, strict production requirements and the highest quality for the finished product & the basic features of the machine are briefed below
- Unwind pneumatic brake, comparing with magnetic powder brake, it has longer life and more controlling precision.
- Shaftless hydraulic loading which can lift heavy roll.
- Equipped with anti-curve device to prevent paper from getting curve during cutting.
- Equipped with paper pre-pressing device to make the pressing roll moving vertically & ensure proper positioning of feeding paper, and reduce the phenomenon of paper creping
- Equipped with upper, lower and back cutting knife, the cutting part is covered in safety cover & when the safely cover is open, machine will stop automatically.
- Equipped with automatic adjustment system of paper edges and corners
- HMI operation which is convenient, you can input cutting length and quantity
- Equipped with static electric elimination device
- Equipped with paper conveying device to increase the stability of paper and avoid inclination
- Equipped with automatic paper alignment and collection equipment
- Equipped with automatic counting label insert equipment to realize sheet replenish function of non-conforming products.
- The whole driving system is servo motor control, high precision.
- The sheeter has a wide range for cutting papers from reel to sheet format & the drum for the transversal cut is de- signed with low inertia and very high stiffness to get very high performances and reach high production with a minimum power consumption.
- The cut motor is positioned in the sheeter side and it’s directly connected with the cutting drums without other devices in the middle (direct drive).
- The draw roll is also connected on the same axis with the respective motor in this case in the middle between the motor and the roll there is a gearbox with low backlash to have the maximum cut accuracy and the minimum maintenance.
- This range of sheeters are designed to have high performances of production and high-quality results & the construction techniques fit the request of the operators to have a very simple way of use in the production phase and in the setup phase.
